Introduction

Welcome back, everyone! In our previous article, we introduced you to Docker and its key components: containers and images. We explored how Docker simplifies application development and deployment by providing a consistent environment across different systems.

Today, we’re taking a deeper dive into Docker’s architecture and getting you set up with your first Docker environment. We’ll explore the three main parts of Docker that work together seamlessly: the client, the daemon, and the registry. Plus, you’ll get hands-on experience with essential Docker commands, including how to create and manage your first container.

By the end of this article, you’ll have a solid understanding of how Docker works behind the scenes and be ready to start exploring the world of containerized applications. Let’s get started!

Docker Architecture

Docker’s architecture is like a three-piece puzzle that fits together perfectly to make containerization work. These three pieces are:

1. Docker Client: This is your control panel for Docker. It’s what you use to send commands to Docker, like building images, running containers, and managing your Docker environment.

2. Docker Daemon: This is the engine room of Docker. It’s the background process that runs on your computer and actually does all the heavy lifting. It builds images, starts and stops containers, manages networks, and handles all the behind-the-scenes magic.

3. Docker Registry: This is where Docker images are stored. Think of it as a big library of blueprints for containers. Docker Hub is a popular public registry, but you can also set up your own private registries to store your custom images.

These three components work together in a coordinated way. Here’s a typical workflow:

1. You use the Docker Client to issue a command, like running a new container.
2. The Client sends this command to the Docker Daemon.
3. If needed, the Daemon communicates with a Registry to pull down the required image.
4. The Daemon then creates and runs the container based on the image.

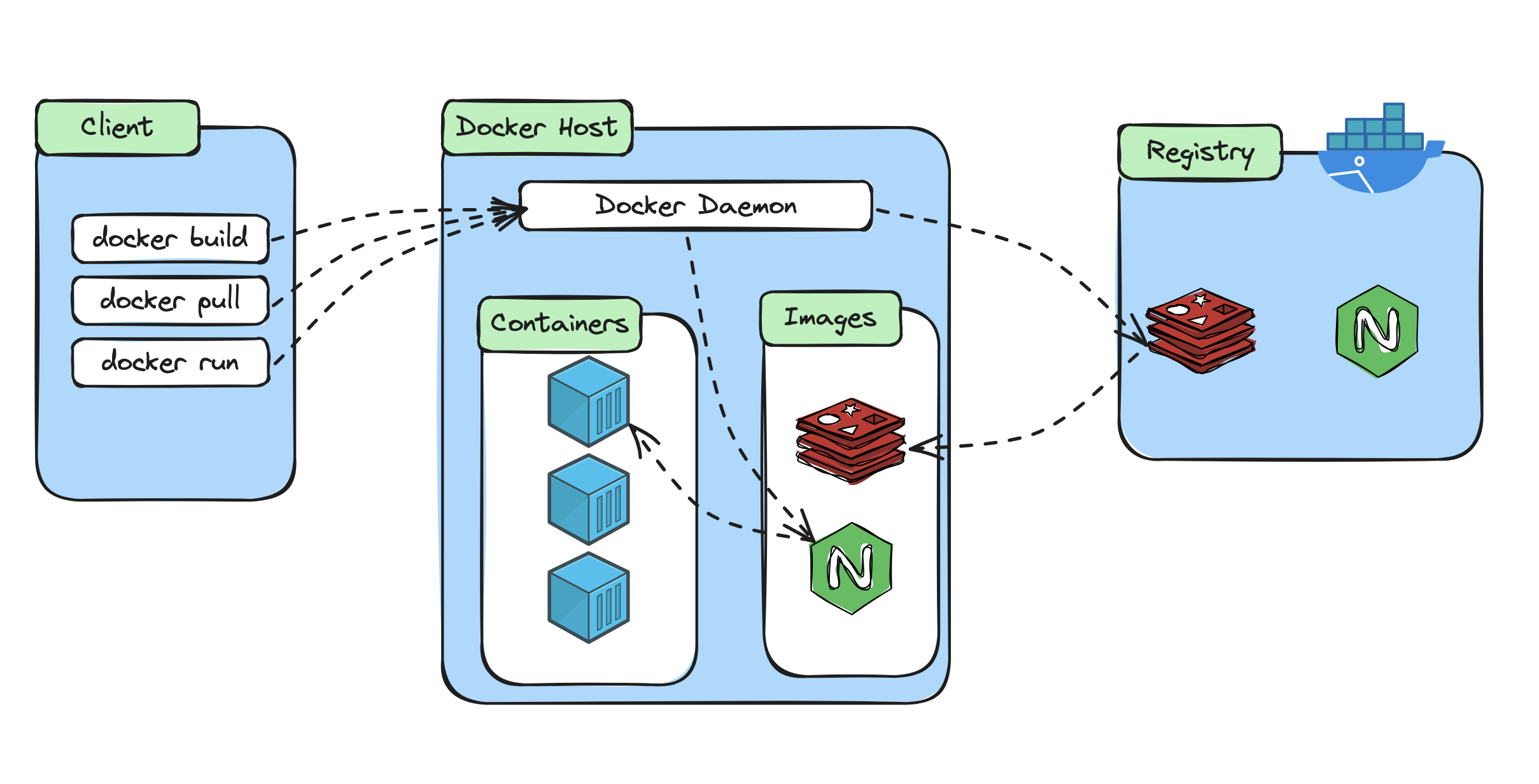

Let’s visualize how these components interact:

This architecture enables effortless creation, management, and distribution of containerized applications.

Setting Up Docker

To start using Docker, you’ll need to set up a Docker environment on your system. The setup process varies depending on your operating system:

• For Mac and Windows users, Docker Desktop is the recommended option. It provides a full Docker environment with a user-friendly interface.
• For Linux users, you’ll be using Docker Engine directly.

Before you begin, make sure your system meets the minimum requirements:

• For Windows: Windows 10 64-bit: Pro, Enterprise, or Education (Build 16299 or later), or Windows 11 64-bit.
• For Mac: macOS must be version 10.15 or newer.
• For Linux: A 64-bit version of CentOS, Debian, Fedora, or Ubuntu.

To get detailed installation instructions for your specific system, visit the official Docker installation guide.

This guide will walk you through the installation process, ensuring you have a complete Docker environment ready to go.

Note: During installation, you might encounter issues related to system permissions or conflicts with existing software. If you run into any problems, the Docker documentation provides troubleshooting steps for common installation issues.

Once you’ve completed the installation, open a terminal or command prompt and run docker --version to verify that Docker was installed correctly. You’re now ready to start your Docker journey!

Your First Docker Commands

Once Docker is installed, you’ll interact with it primarily through the Docker CLI (Command Line Interface). This is where you’ll run commands to build images, create and manage containers, and perform all sorts of other Docker-related tasks.

Basic Docker Commands

Let’s start with a few basic commands to get you familiar with the Docker CLI:

1. docker --version: This command shows you the version of Docker installed on your system. It’s a good way to check if Docker is installed correctly.

2. docker info: This command displays system-wide information about your Docker installation. You’ll see things like the number of containers and images you have, the storage driver being used, and other useful details.

3. docker run hello-world: This command runs a simple container called “hello-world.” It’s a quick test to ensure that Docker is working as expected. You should see a “Hello from Docker!” message in your terminal.

Let’s break down what happens when you run the docker run hello-world command:

1. Docker checks if the hello-world image is available locally.
2. If not, it pulls the image from Docker Hub.
3. Docker creates a new container from this image.
4. The container runs, prints its message, and then exits.

This simple command demonstrates the core workflow of Docker: finding an image, creating a container, and running it.

Try running these commands in your terminal to get a feel for how the Docker CLI works.

Managing Container Lifecycle

Now that you’ve run a few basic commands, let’s learn how to manage the lifecycle of your Docker containers. Think of this like controlling your containers – starting them, stopping them, and cleaning them up when you’re done.

Understanding container lifecycle management is crucial because it allows you to efficiently use system resources and maintain a clean Docker environment. Here are some essential commands:

• docker ps: Lists all the containers that are currently running.

• docker ps -a: Lists all containers, including those that have stopped.

• docker start <container_id>: Starts a container that has been stopped. You’ll need to provide the container ID, which you can get from the docker ps -a command.

• docker stop <container_id>: Stops a running container. Again, you’ll need the container ID.

• docker restart <container_id>: Restarts a container.

• docker kill <container_id>: Forcefully stops a running container. Use this if a container isn’t responding to the docker stop command.

• docker rm <container_id>: Removes a container that has been stopped.

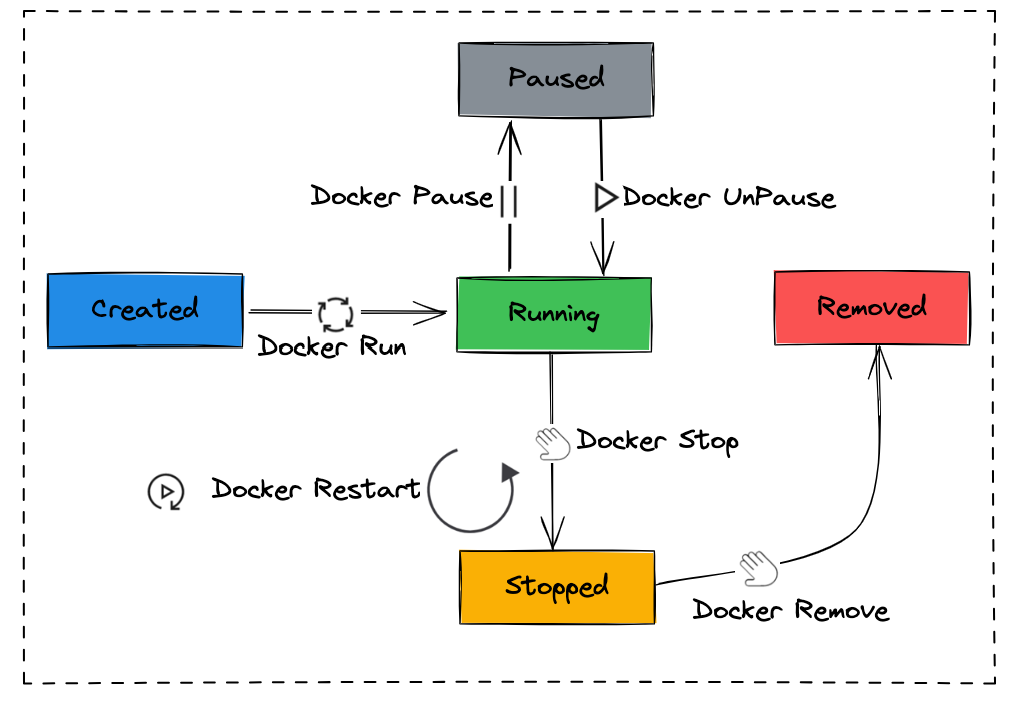

The diagram above shows the different states a Docker container can be in and the commands you can use to manage its lifecycle.

These commands give you full control over your Docker containers, allowing you to manage their state and keep your system organized. Remember, efficient container management helps optimize resource usage and keeps your Docker environment clean and manageable.

Understanding Docker Images

As we start working with Docker, it’s crucial to understand Docker images. An image is a read-only template used to create containers. It contains the application code, runtime, libraries, and dependencies. Think of an image as a blueprint, and a container as a house built from that blueprint.

Docker Hub is a public registry where you can find official images for many popular software packages. It’s like a big library of these blueprints, ready for you to use.

To download an image, use the docker pull command. For example:

1

docker pull ubuntu

This command downloads the Ubuntu image from Docker Hub to your local system. Here’s what happens behind the scenes:

1. Docker checks if the image is already available locally.
2. If not, it connects to Docker Hub (or another specified registry).
3. It downloads the image layers and stores them on your local system.

To see all images on your system, use:

1

docker images

This command lists all the Docker images you’ve downloaded or created, showing details like the repository name, tag, image ID, creation date, and size.

Understanding the relationship between images and containers is key:

• An image is a static file that contains all the necessary components to run a containerized application.
• A container is a running instance of an image. You can create multiple containers from the same image, each running independently.

This relationship allows for efficient use of resources and easy distribution of applications. You can create your own custom images (which we’ll cover in a future article) or use pre-built images from Docker Hub to quickly set up complex environments.

Creating Your First Container

Now that we understand images, let’s create and run a container:

1

docker run -it ubuntu

This command uses docker run, which is used to run containers on your local machine. Let’s break down what happens:

1. Docker checks if the Ubuntu image is available locally.
2. If not, Docker pulls the image from Docker Hub (the default repository).
3. Once the image is available locally, Docker creates a new container from this image.
4. It then starts the container.
5. The -it flags make the container interactive, giving you a terminal inside the running Ubuntu container.

You’ll find yourself at a command prompt inside the container. You can run any command you’d normally run on an Ubuntu system. For example, try ls to list the files in the container’s current directory.

To exit the container and return to your regular terminal, simply type exit and press Enter.

Note: When you exit the container, it stops running but isn’t removed. You can start it again using the docker start command followed by the container ID. To get back into a running container, use docker exec -it <container_id> /bin/bash.

Remember, you can use the container management commands you learned earlier (like docker stop and docker rm) to manage this Ubuntu container.

Common Issues and Troubleshooting

As you start working with Docker, you might encounter some common issues. Let’s look at a few and understand why they occur:

1. Docker daemon not running:

   • Issue: You might see an error like “Cannot connect to the Docker daemon”.
   • Cause: This usually happens when the Docker service isn’t running.
   • Solution: Ensure Docker is running. On Windows or Mac, check if Docker Desktop is started.

2. Permission denied:

   • Issue: You might get a “permission denied” error when trying to run Docker commands.
   • Cause: On Linux, this often occurs because your user isn’t in the ‘docker’ group.
   • Solution: Add your user to the ‘docker’ group or use sudo with Docker commands.

3. Disk space issues:

   • Issue: You might run out of disk space after using Docker for a while.
   • Cause: Docker can accumulate a lot of unused data over time, including stopped containers and unused images.
   • Solution: Use docker system prune to remove unused containers, networks, images, and volumes.

4. Container not starting:

   • Issue: Your container fails to start or crashes immediately.
   • Cause: This can happen due to misconfiguration, resource conflicts, or issues with the container’s application.
   • Solution: Check your container logs with docker logs <container_id> to get more information about the error.

Most Docker issues can be resolved by checking logs, restarting the Docker daemon, or ensuring you have the necessary permissions. If you encounter persistent problems, the Docker documentation and community forums are excellent resources for troubleshooting.

Key Takeaways

• Docker’s architecture consists of three main components: Client, Daemon, and Registry
• Setting up Docker varies by operating system, with Docker Desktop recommended for Mac and Windows
• Basic Docker commands include docker --version, docker info, and docker run
• Docker images are templates for creating containers, available on registries like Docker Hub
• Containers can be created, started, stopped, and removed using Docker CLI commands

Conclusion

We’ve covered a lot of ground today! You’ve learned about the inner workings of Docker, set up your own Docker environment, and even run your first commands and containers. You’re well on your way to mastering the basics of this powerful tool.

But the real fun begins when you start building your own Docker images. Imagine packaging your entire application and all its dependencies into a single, portable unit that you can share and deploy with ease.

Ready to take your Docker skills to the next level?

Learn how to create your first Docker image in our next article!
